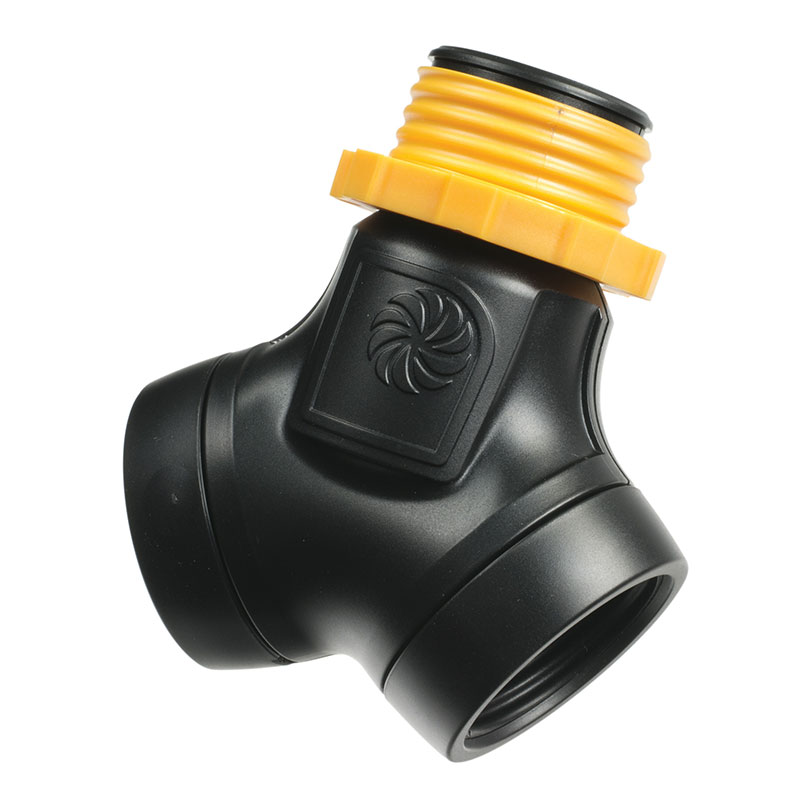

e-breathe Y-Connector Hip (for BeltClip, without base)

Dual filter operation: With Smartblower dual filter operation, two filters can be used simultaneously thanks to the additionally available Y-connector. The Y-connector is screwed between the motor unit and the filters. When using combination filters, dual filter operation is necessary because in single filter operation, an excessive volume flow prevents sufficient filtering of the pollutant. The Y-connector with blower and filters can be carried on a belt or permanently attached to the Smartbelt back belt system. Technical details: • SVE mode: SVE dual filter mode • Accessories: Y-connector required • Number of filters: 2x particle filters or 2x combination filters • Battery life: approx. 4-6 hours • Approval: CE certification according to EN 12941 Product description: The small and lightweight Smartblower respiratory protection fan system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. These basic components can be used flexibly or expanded for specific applications. The blower is designed for positive pressure operation and supplies the connected headpiece with breathing air. The blower is controlled by the 350g SVE, which delivers a constant volume flow of 140l/min to 160l/min depending on the presetting. The Smartblower system has a variety of practical functions: Automatic airflow adjustment The software integrated into the device monitors the airflow to ensure that the user is supplied with the correct flow rate – even as the filter becomes full and the battery power decreases. If it is not possible to achieve the correct airflow, the system warns the user with a visual and audible alarm. Ultra-lightweight Weighing just 435 g (SVE motor), the system is ultra-lightweight. Thanks to its weight of just 85 g, the lightweight Smartblower can be operated directly on a full-face mask without a breathing hose. The lightweight design and ergonomic shape ensure maximum comfort, even during strenuous work and long periods of use. Modular respiratory protection system All main components are modular in design, allowing damaged parts to be replaced quickly. This keeps the associated downtime and costs to a minimum. Lithium-ion battery / replacement battery The SVE has a built-in lithium-ion battery with a runtime of up to 8 hours. A second SVE as a replacement battery allows the user to charge and replace the battery without interrupting work. The SVE's fast-charging function charges the battery to 80% in one hour and fully charges it in 3 hours. IP 67 protection class The SVE can be completely submerged in water without any problems. This also applies to the motor unit, provided it is sealed with decontamination caps. Scope of delivery: e-breathe control supply unit SVE V1.1e-breathe SVE charging cradle with wall mount V1.0e-breathe Smartblower motor V.1.1 (without cable) e-breathe SVE spiral cable 2.0-DVY connector Complete with foot Smartbelt hip belt2x e-breathe particle filter P3 R/PS Le-breathe cleaning/storage kit RG (decontamination set)

Accessory for the e-breathe e-Flow, PM Proflow 2 SC & Duraflow as a comfort belt with back padding for greater wearing comfort, even during longer periods of use. The back padding reduces the contact area and allows heat to dissipate more effectively. The belt is washable. Compatible with: Smartbelt back belt system, e-breathe e-Flow, PM Proflow2 SC & Duraflow Thanks to its modular design, you can expand the belt into a shoulder carrying system at any time with the e-breathe shoulder harness (Shoulder Harness Pro 3.0).

The heart of the Smartbelt back strap system are the wings with the bayonet lock for the Y-connector and the swivel joint. The bayonet lock provides a secure hold for the Y-connector and ensures balanced weight distribution. Accessories Component for the Smartbelt back belt system. The modular design allows you to expand your system at any time. Compatible with: Smartbelt back belt system

Thanks to the modular design of the components and the safety buttons on the Smartbelt, you can change the belt position/combination and switch between up to five carrying positions. The Smartbelt rucksack allows you to choose between two carrying positions. Set consists of: Wings Rucksack harness Compatible with: Smartblower & Y-Connector Thanks to the modular design, you can expand your system at any time.

The belt extension serves to extend the belt circumference for the Smartbelt belt system.

The Y-connector is always required when the Smartblower is to be used for protection against gases. In such applications, two combination filters must always be used simultaneously due to the enormous air volume of the Smartblower in order to ensure sufficient safety. Of course, the Y-connector can also be used with two particle filters. This reduces the resistance that the filters exert on the Smartblower and optimises the air volume. At the same time, the capacity of the filters doubles, thereby extending the service life of the system. Used with the Smartbelt back belt & Smartblower respiratory protection blower. The system connects two filters to the Smartblower blower. This distributes the air flow and consumption across two filters. Only compatible with e-breathe Smartbelt & Smartblower blower. More information at www.e-breathe.de

The Smartbelt adapts perfectly to the requirements of a wide range of applications. Lightweight and flexible, it follows every movement of the user and thus provides optimum support for the task at hand. Thanks to the modular design of the components and the  safety buttons on the Smartbelt, you can change the belt position/combination and switch between five carrying positions. Back padding made of breathable functional foam ensures ventilation and thus better dissipates heat and moisture. The bayonet lock on the Smartbelt allows the Y-connector to be attached securely and quickly. Connects 5 possible carrying combinations in just one system. Set consists of: Wings Buckle strap Backpack harness Blower Belt Compatible with: Smartblower & Y-Connector

The anatomical shape of the shoulder straps can be universally adjusted to any size. The breathable Air-Mesh fabric dissipates heat while ensuring maximum comfort. Accessory component for the Smartbelt back belt system. The modular design allows you to expand your system at any time. Compatible with: Smartbelt back belt system and Smartblower Y-Connector

The buckle strap is required for the Smartbelt hip belt. To do this, turn the wings into a horizontal position. Open the safety buttons and thread the strap through. Accessory component for the Smartbelt back belt system. The modular design allows you to expand your system at any time. Compatible with: Smartbelt back belt system

The modular design of the components and the safety buttons on the Smartbelt allow you to change the belt position/combination and switch between up to five carrying positions. Set consists of: Wings Buckle strap Compatible with: Smartblower Two-filter system and Y-connector The modular design allows you to expand your system at any time.

The storage bag is designed for safe and compact storage of the Smartbelt system.
