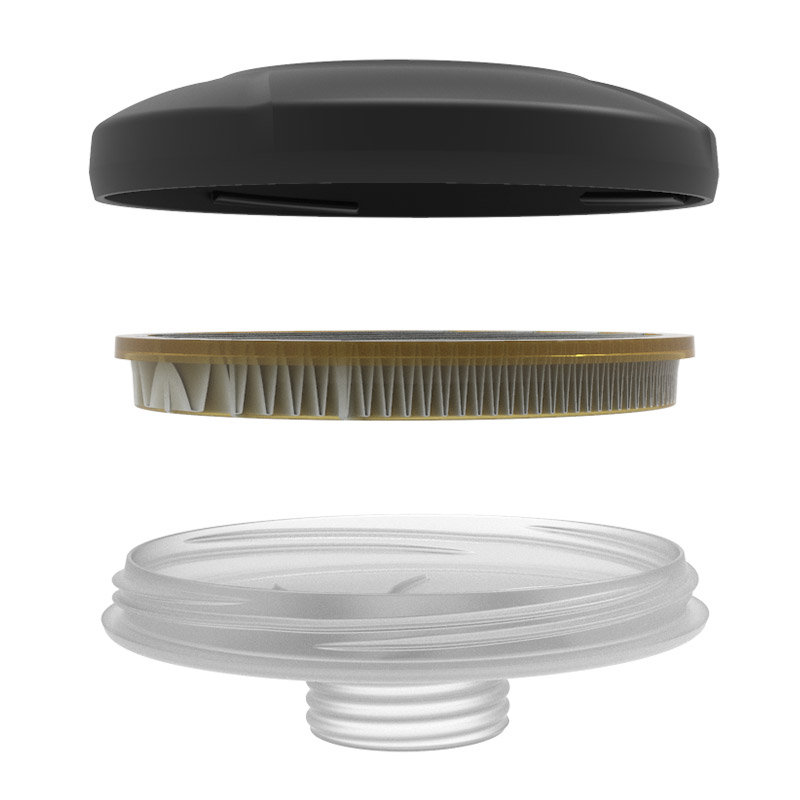

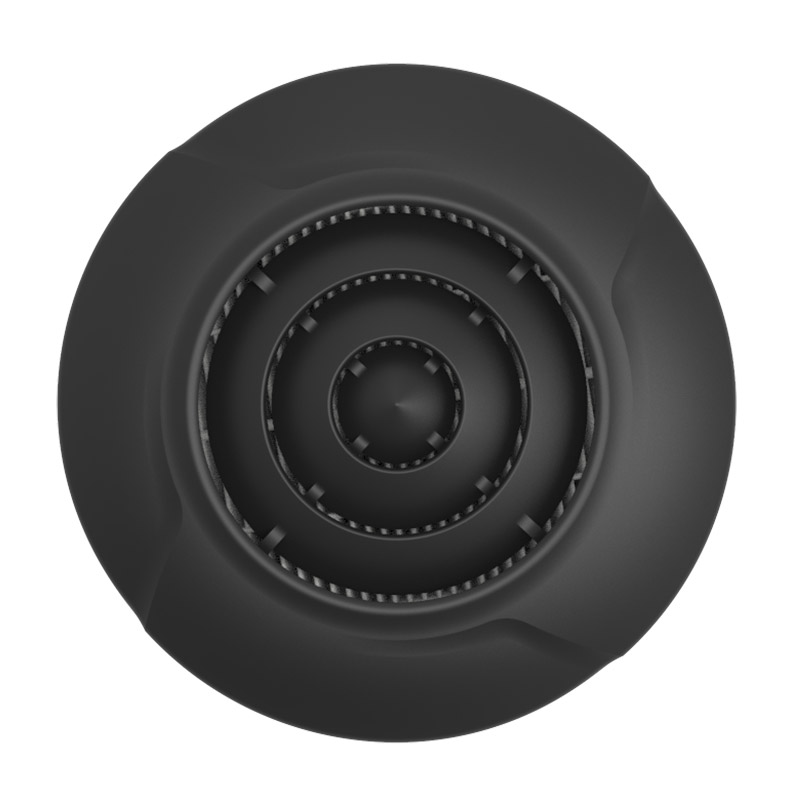

e-breathe Particle Filter P3 R / PSL

Thanks to its innovative and modular design, this belt-mounted respiratory protection fan system is one of the latest generation of respiratory protection fans. Its slim housing and ergonomic design make it easy to use even in confined spaces. The system consists of a base unit and various filter boxes that serve as filter holders. The modular design allows the device to be converted to suit specific requirements. • Automatic system test: The integrated software of the intelligent e-Flow performs an automatic system test every time it is switched on, thus checking the functionality of the device before each use. • Intelligent 2-stage warning system:The electronics continuously monitor all important components and warn the user if the minimum volume flow is not reached, if the filter is full or if the battery power is too low. -> Acoustic, optical and mechanical (vibration alarm) signal • Reliable power source: Replaceable and lightweight lithium-ion battery with fast charging function and a long service life. Thanks to communication between the system and the battery, the remaining battery life is always shown in real time on the display. Technical details: • Lithium-ion battery: 14.4V / 3.4Ah • Battery  life approx. 7 to 10 hours •  Air flow 160 – 180 – 200 l/min Set consists of:  e-breathe e-Flow Basic PAD box Blower unit Hood systemse-breathe e-flow battery V3. 0e-breathe e-Flow charging cradleComfort belt Pro textile wide V 2. 1e-breathe e-Flow disposable device cover - PAD box (limited use)  e-breathe ecoPAD P3 R/PSL (pack of 4/45)  e-breathe cleaning/storage kit e-Flow PAD box (decontamination set)  e-breathe filter cover *Hose must be ordered separately to fit the headpiece and is not included in the scope of delivery! Respiratory protection systems (consisting of an air source, a hose and a headpiece) must be serviced  regularly in accordance with DGUV 112-190 and manufacturer's specifications to ensure proper and safe operation for users (see instructions for use). Please contact us if you have any questions; we are an authorised and certified service centre.

Thanks to its innovative and modular design, this belt-mounted respiratory protection fan system is one of the latest generation of respiratory protection fans. Its slim housing and ergonomic design make it easy to use even in confined spaces. The system consists of a base unit and various filter boxes that serve as filter holders. The modular design allows the device to be converted to suit specific requirements. • Automatic system test: The integrated software of the intelligent e-Flow performs an automatic system test every time it is switched on, thus checking the functionality of the device before each use. • Intelligent 2-stage warning system:The electronics continuously monitor all important components and warn the user if the minimum volume flow is not reached, if the filter is full or if the battery power is too low. -> Acoustic, optical and mechanical (vibration alarm) signal • Reliable power source: Replaceable and lightweight lithium-ion battery with fast charging function and a long service life. Thanks to communication between the system and the battery, the remaining battery life is always shown in real time on the display. Technical details: • Lithium-ion battery: 14.4 V / 3.4 Ah • Battery  life approx. 7 to 10 hours • Air  flow 160 – 180 – 200 l/min Set consists of: e-Flow  blower unit with filter box, e-Flow battery, e-Flow charger and e-breathe comfort belt Standard is hood mode 160-180-200 l/min, can also be supplied as a variant for full masks and half masks with 120-140-160 l/min.*Hose must be ordered separately to fit the headpiece and is not included in the scope of delivery! Note:  The filters are not included in the scope of delivery and must be ordered separately. Product images with filters are for illustration purposes only. Respiratory protection systems (consisting of an air source, a hose and a headpiece) must be serviced  regularly in accordance with DGUV 112-190 and manufacturer's specifications to ensure proper and safe operation for users (see instructions for use). Please contact us if you have any questions; we are an authorised and certified service centre.

The small and lightweight Smartblower respiratory protection blower system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. These basic components can be used flexibly or expanded for specific applications. The blower is designed for positive pressure operation and supplies the connected headpiece with breathing air. The blower is controlled by the 350g SVE, which delivers a constant volume flow of 140l/min to 160l/min, depending on the presetting. The Smartblower system has a variety of practical functions: The radial motor delivers an air volume flow of up to 180 l/min. The blower impresses with its compact size and weight of 85 g. • IP-67 waterproof Connection DIN round thread filter Note: Supplied without connection cable to the SVE. The cable is available separately in two versions: as a straight cable or as a spiral cable.

Single filter operation:In Smartblower single filter operation, the motor unit with the SVE is worn on a belt. A breathing tube is screwed onto the motor unit, which is connected to a hood and constantly supplies it with breathing air. The air supply inflates the hood and builds up positive pressure, which prevents harmful substances from entering the hood. The blower is operated with only one filter, making it more cost-effective and sustainable.• Area of application: Pharmaceutical industry and disaster medicine• No wearing time limit for the system• No G26 medical examination required Technical details:• SVE mode: SVE single filter operation• Number of filters: 1x particle filter• Battery life: approx. 6-8 hours Product description:The small and lightweight Smartblower respiratory protection fan system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. These basic components can be used flexibly or expanded for specific applications. The blower is designed for positive pressure operation and supplies the connected headpiece with breathing air. The blower is controlled by the 350g SVE, which delivers a constant volume flow of 140l/min to 160l/min, depending on the presetting. The Smartblower system has a variety of practical functions: Automatic airflowadjustment The software integrated into the device monitors the airflow to ensure that the user is supplied with the correct flow rate – even as the filter becomes full and the battery power decreases. If it is not possible to achieve the correct airflow, the system warns the user with a visual and audible alarm. Ultra-lightweightWeighing just 435 g (SVE motor), the system is ultra-lightweight. Thanks to its weight of just 85 g, the lightweight Smartblower can be operated directly on a full-face mask without a breathing tube. The light weight and ergonomic design ensure maximum wearing comfort even during strenuous work and long-term use. Modular respiratory protection systemAll main components are modular in design, allowing damaged parts to be replaced quickly. This keeps the associated downtime and costs to a minimum. Lithium-ion battery / replacementbattery The SVE has a built-in lithium-ion battery with a runtime of up to 8 hours. A second SVE as a replacement battery allows the user to charge and replace the battery without interrupting work. The SVE's fast-charging function charges the battery to 80% in one hour and fully charges it in 3 hours. IP 67 protection ratingThe SVE can be completely submerged in water without any problems. This also applies to the motor unit, provided it is sealed with decontamination caps. Scope of delivery: AnzahlArt. Nr. Name 1x322092103e-breathe SVE V1.11x322002101 e-breathe Smartblower Charging Station SVE V.1.1 1x322092102 e-breathe Smartblower Motor V.1.1 (without cable) 1x322002105 e-breathe Smartblower Belt Textile (50mm) 1x322004021 e-breathe BeltClip 1x322002137 e-breathe SVE Spiral Cable 2.0 DV 1x322002109 e-breathe Particle Filter P3 R / PSL 1x500510048 e-breathe e-flow Cleaning- / Storage-Kit - Filter-Box (Deconset)

Dual filter operation: With Smartblower dual filter operation, two filters can be used simultaneously thanks to the additionally available Y-connector. The Y-connector is screwed between the motor unit and the filters. When using combination filters, dual filter operation is necessary because in single filter operation, an excessive volume flow prevents sufficient filtering of the pollutant. The Y-connector with blower and filters can be carried on a belt or permanently attached to the Smartbelt back belt system. Technical details: • SVE mode: SVE dual filter mode • Accessories: Y-connector required • Number of filters: 2x particle filters or 2x combination filters • Battery life: approx. 4-6 hours • Approval: CE certification according to EN 12941 Product description: The small and lightweight Smartblower respiratory protection fan system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. These basic components can be used flexibly or expanded for specific applications. The blower is designed for positive pressure operation and supplies the connected headpiece with breathing air. The blower is controlled by the 350g SVE, which delivers a constant volume flow of 140l/min to 160l/min depending on the presetting. The Smartblower system has a variety of practical functions: Automatic airflow adjustment The software integrated into the device monitors the airflow to ensure that the user is supplied with the correct flow rate – even as the filter becomes full and the battery power decreases. If it is not possible to achieve the correct airflow, the system warns the user with a visual and audible alarm. Ultra-lightweight Weighing just 435 g (SVE motor), the system is ultra-lightweight. Thanks to its weight of just 85 g, the lightweight Smartblower can be operated directly on a full-face mask without a breathing hose. The lightweight design and ergonomic shape ensure maximum comfort, even during strenuous work and long periods of use. Modular respiratory protection system All main components are modular in design, allowing damaged parts to be replaced quickly. This keeps the associated downtime and costs to a minimum. Lithium-ion battery / replacement battery The SVE has a built-in lithium-ion battery with a runtime of up to 8 hours. A second SVE as a replacement battery allows the user to charge and replace the battery without interrupting work. The SVE's fast-charging function charges the battery to 80% in one hour and fully charges it in 3 hours. IP 67 protection class The SVE can be completely submerged in water without any problems. This also applies to the motor unit, provided it is sealed with decontamination caps. Scope of delivery: e-breathe control supply unit SVE V1.1e-breathe SVE charging cradle with wall mount V1.0e-breathe Smartblower motor V.1.1 (without cable) e-breathe SVE spiral cable 2.0-DVY connector Complete with foot Smartbelt hip belt2x e-breathe particle filter P3 R/PS Le-breathe cleaning/storage kit RG (decontamination set)

Full mask operation: With Smartblower full mask operation, the motor unit is screwed into the screw thread of the mask between a full or half mask and a filter. The lightweight SVE with rechargeable battery can be conveniently attached to a belt. The blower provides respiratory support, which extends the wearing time limit and makes the user's work easier. Suitable for all applications that require respiratory protection with a full-face mask Respiratory support for the userCost-effective thanks to single-filter operation and e-breathe filter systemExtension of the wearing time limit thanks to blower support Technical details: SVE mode: SVE full-face mask operation Number of filters: 1x particle filterBattery life: approx. 6-8 hoursApproval: CE certification according to EN 12942 Product description: The small and lightweight Smartblower respiratory protection blower system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. These basic components can be used flexibly or expanded for specific applications. The blower is designed for positive pressure operation and supplies the connected headpiece with breathing air. The blower is controlled by the 350g SVE, which delivers a constant volume flow of 140l/min to 160l/min, depending on the presetting. The Smartblower system has a variety of practical functions: Automatic airflow adjustment The software integrated into the device monitors the airflow to ensure that the user is supplied with the correct flow rate – even as the filter becomes full and the battery power decreases. If it is not possible to achieve the correct airflow, the system warns the user with a visual and audible alarm. Ultra-lightweight With a weight of 435 g (SVE motor), the system is ultra-lightweight. Thanks to its weight of just 85 g, the lightweight Smartblower can be operated directly on a full-face mask without a breathing hose. The lightweight design and ergonomic shape ensure maximum comfort even during strenuous work and long-term use. Modular respiratory protection system All main components are modular in design, allowing damaged parts to be replaced quickly. This keeps the associated downtime and costs to a minimum. Lithium-ion battery / replacement battery The SVE has a built-in lithium-ion battery with a runtime of up to 8 hours. A second SVE as a replacement battery allows the user to charge and replace the battery without interrupting work. The SVE's fast-charging function charges the battery to 80% in one hour and fully charges it in 3 hours. IP 67 protection class The SVE can be completely submerged in water without any problems. This also applies to the motor unit, provided it is sealed with decontamination caps. Scope of delivery: e-breathe SVE V1.1 e-breathe SVE charging cradle with wall mount V1.0 e-breathe Smartblower motor V.1.1 (without cable) Belt can be decontaminated with buckle e-breathe SVE spiral cable 2.0-DVe-breathe cleaning/storage kit RG (decontamination set) e-breathe particle filter P3 R/PSL
